Configure / Assign IP address to Cisco Layer 3 Switch Interfaces

In this article will demonstrate on how to assign an ip address to cisco layer 3 switch.
By default, all interface on the cisco layer 3 switch are physical layer 2 ports and belong to vlan 1 untill you convert these interfaces to physical layer 3 port by using no switchport command.

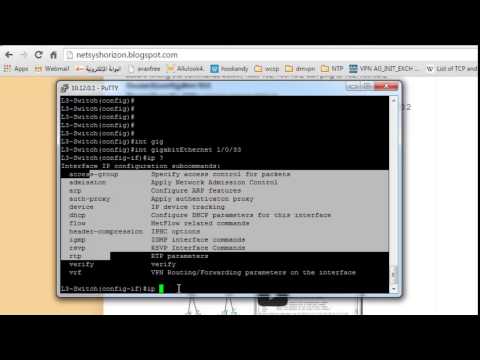

So, you couldn't assign an ip address to cisco layer 3 interfaces unless you convert them to layer 3 port by using no switchport command, as you see below
London(config)#int gigabitEthernet 1/0/46
London(config-if)#no switchport
London(config-if)#ip address 192.168.10.1 255.255.255.0


To do so and for more details, watch this simple and short video on youtube
